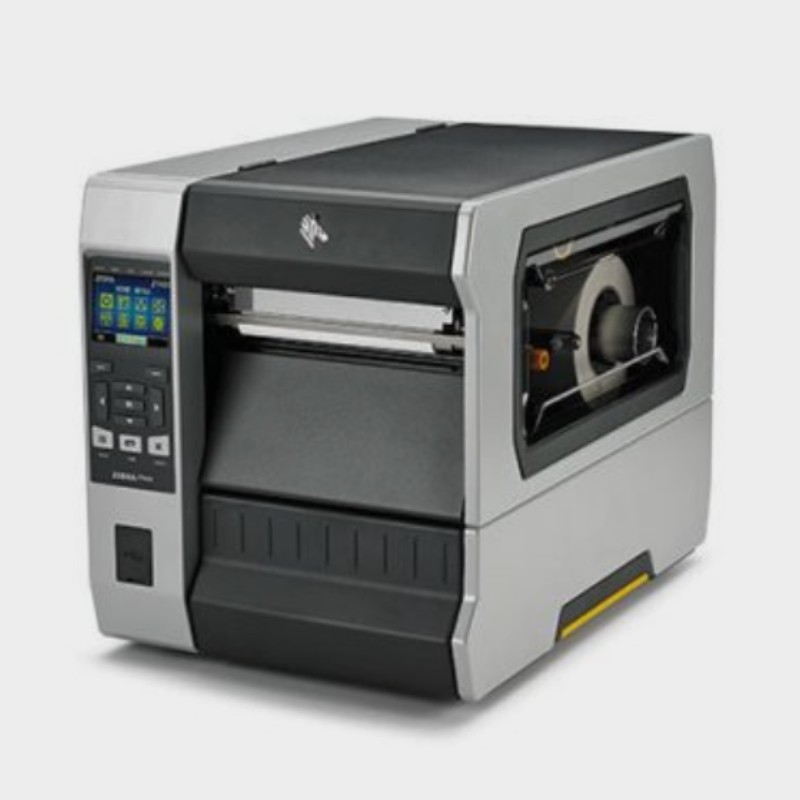

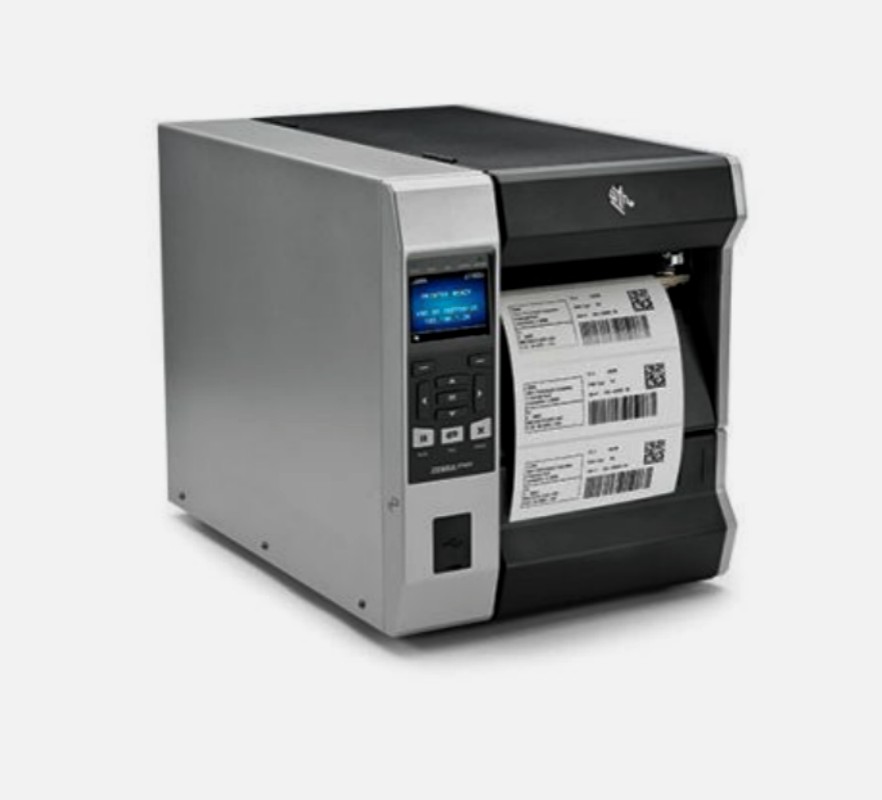

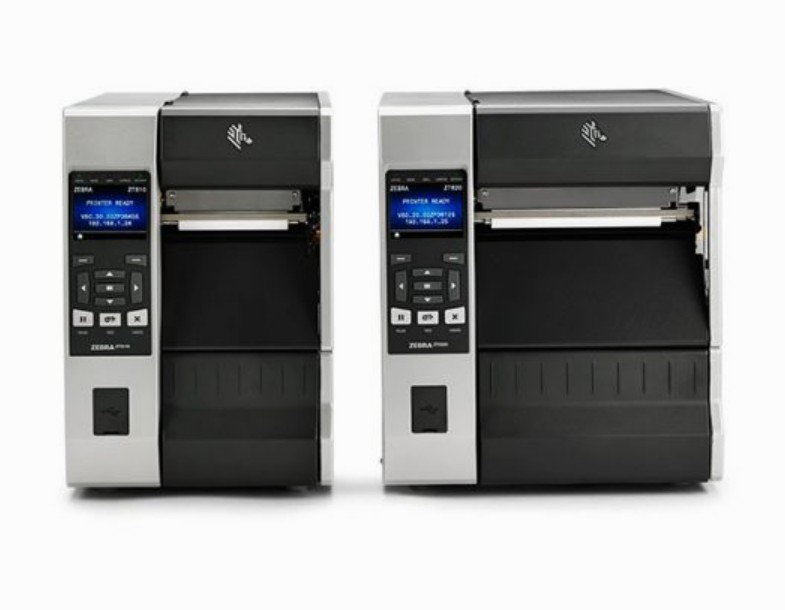

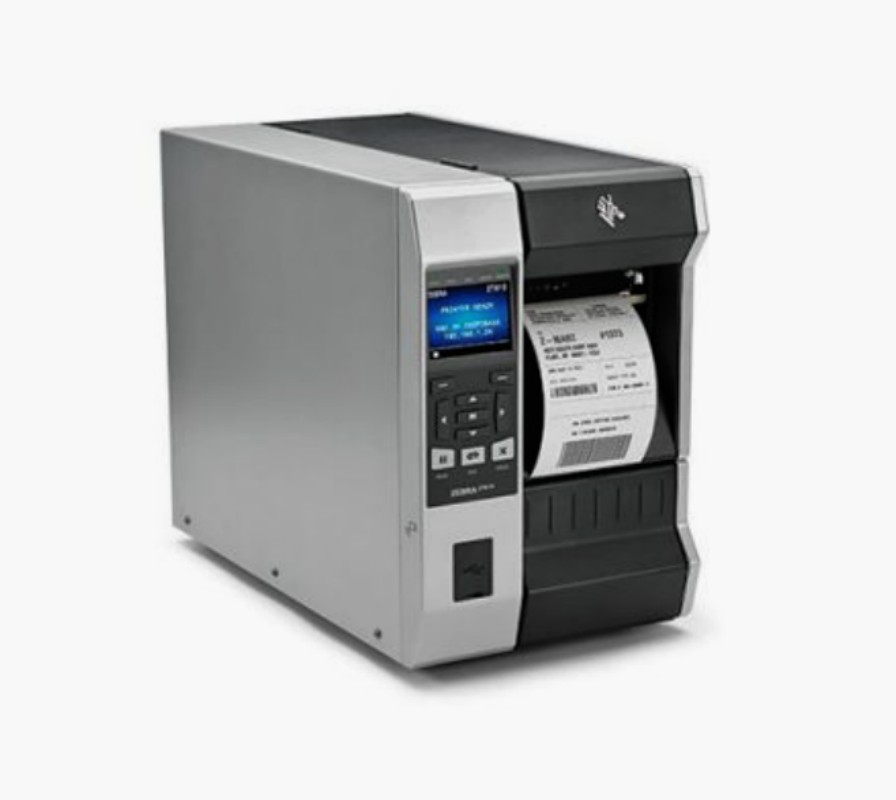

Genuine Industrial ZT600 Series ribbon printer Industrial Printer ZT620 for satin ribbon printer

ZT620 STANDARD FEATURES

Easy Side-Loading print mechanism
Cableless Quick Change Platen
Full-function front panel and 3.5 inchmultilingual color non-touch 320×240 pixel LCD display – with user-programmablepassword protection
Clear media side bi-fold door allowsshorter media door opening radius, andeasy monitoring of supplies usage withoutopening the printer
Thin film printhead – with E3 ElementEnergy Control Equalizer”
1GB SDRAM (32 MB User Available)
2 GB on board Flash memory (512 MB User Available)
Cortex A9 800MHz Processor
Serial RS-232, Full Speed (12Mbps) USB 2.BT4.0, static NFC tag, and Auto-switchingGigabit Ethernet
Two front mounted USB Host ports
Dual media sensors – transmissive andreflective, selectable through software orfront panel
Real- time Clock (RTC)

Firmware

ZPL ll programming language -selectable through software or front panel
XML-Enabled Printing – direct connectintegration for barcode label printing;eliminates license fees and print serverhardware and lowers customization andprogramming costs

OPTIONAL FEATURES

Modular full-width guillotine style cutter withcatch tray – operates under software controlcutting labels individually or in strips (notcompatible with rewind and peel options)
Media rewind spindle – rewinds finished rollinternally onto 3″ (76 mm) core or enableslabel peel and liner rewind
Ribbon Spindle- Support for ribbon coatedside in
Applicator interface – provides status andcontrol signals for applicators and remotecontrol devices
Additional fonts options
RFID capabilities (UHF EPC Gen 2, v.2 Class1 compliant)
Internal IPv4 10/100/1000 Wired Print ServerOption Card
IEEE 1284 Parallel Port
SEH PS105-Z External IPv6 Print Server(requires Parallel port option)
802.11ac Print Server Option card

Printing Specifications

Media Specifications

Minimum label length:Rewind mode: 0.25″ (6 mm
Peel mode: 0.5″(13 mm)
Tear-off mode: 0.7″ (18 mm
Cutter mode: 1.5″ (38 mm)
Media thickness (label and liner):0.003″ (0.076 mm) to 0.007″(0.18 mm) cutter0.003″ (0.076 mm) to 0.012″ (0.305 mm)
Maximum media roll size:8.0″(203 mm) outside diameter on a 3″(76 mm) inside diameter core
Transmissive (gap) sensing standards:Interlabel gap: 2-4 mm, preferably 3 mmSensing notch: 0.25″ W (6 mm) x 0.12″ L3 mm) Sensing hole: 0.125″ (3 mm) diameter
Reflective (black mark) sensing standards:Black mark length (parallel to inside mediaedge): 0.12″-0.43″(3-11 mm)Black mark width (perpendicular to insidemedia edge): 0.43″(> 11 mm)Black mark location: within 0.040″ (1 mm)of inside media edgeBlack mark density: >1.0 Optical DensityUnits (ODU)- Maximum media density: 0.5 ODU
Media width (label and liner): 2.0″ (51 mm) to7.1″ (180 mm)

Ribbon Specifications

Electrical Specifications

250 watt rated Universal power supply withpower-factor correction 90-265 VAC,47-63 Hz
Agency approvals: IEC 60950-1，EN 55022Class B,EN 55024,EN 61000-3-2,EN 61000-3-3
Product Markings: cTUVus, CE, FCC-B,ICES003,VCCl, C-Tick, NOM, S-Mark(Arg), CCC,GOST-R,BSMl,KCC,STB, and UkrSEPRO

Printing Specifications

203 dpi resolution (8 dots/mm)
Heater dimension (W x L): 0.0043″ x 0.0052(0.110 mm x 0.132 mm)
First dot location measured from inside mediaedge:0.14″ +0.05″ (3.5 mm +1.25 mm)
Maximum print width: 832 dots 4.09″ (104 mm)Maximum non-continuous media print length39″(991 mm)
Maximum continuous media print length 1503810 mm)
Media registration tolerance:Vertical:
o+0.30 mm at print speeds at or below4 ips
o + 0.50 mm at print speeds 5 – 6 ipso +1.5mm at speeds greater than 6ips-Horizontal: 士 0.060″+ 1.5 mm)
Programmable print speedsinches per second):2, 4, 3,4,5,6,7,8,9,10,11,12,13, 14
Barcode modulus“x” dimension:Picket fence (non-rotated) orientation:4.9 mil to 49 milLadder (rotated) orientation:4.9 mil to 49 mil
