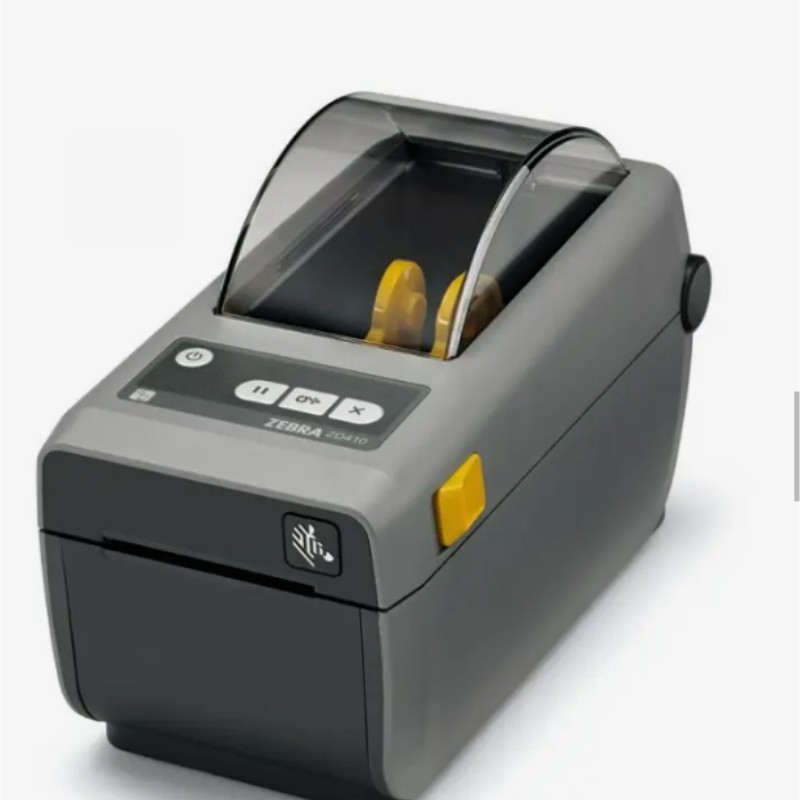

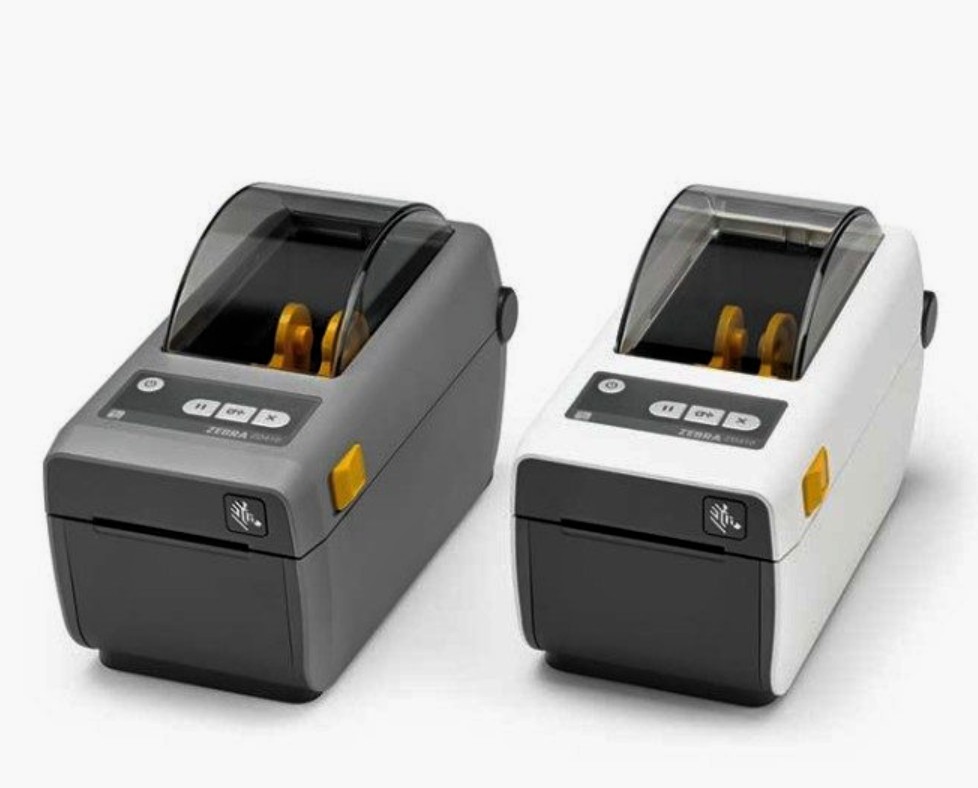

Zebra ZD410 2.2inch Desktop Barcode Printer USB Thermal Barcode Label Printer (Copy)

 Standard Features

• 6 ips maximum print speed
• ZPL II® programming language
• EPL1™ Line Mode/EPL2™ programming language
• Connectivity: USB and USB Host

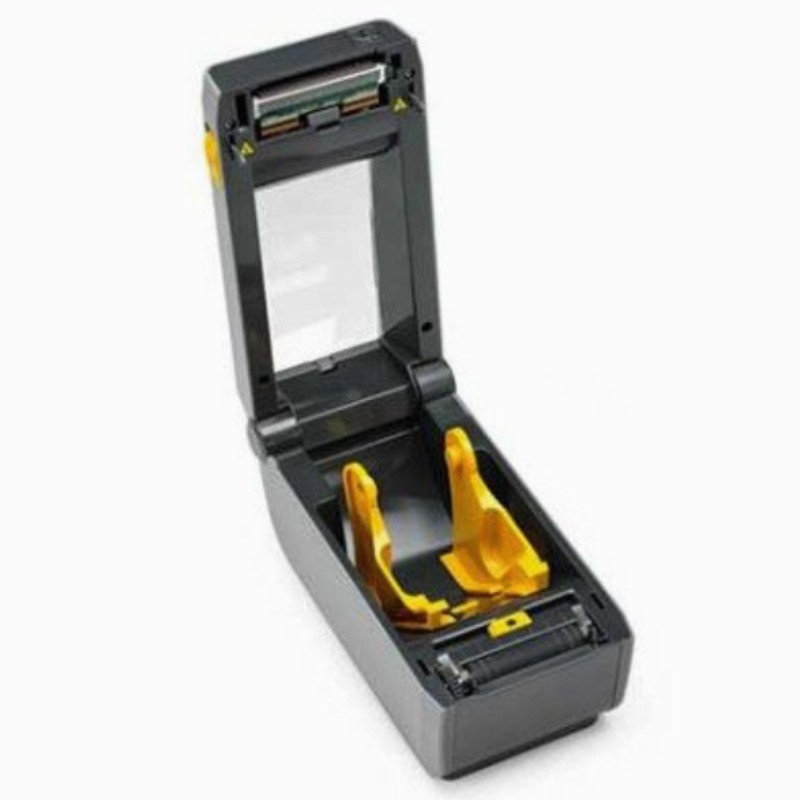

• OpenACCESS™ design for easy media loading
• 203 dpi print resolution (8 dots/mm)
• 2.2” (56 mm) print width
• Direct Thermal printing of barcodes, text and graphics
• 512 MB of Flash memory
• 256 MB SDRAM
• Head-up sensor
• Multi-position transmissive and full-width reflective sensor
• 5” outside diameter media capability
• Fan-fold media feed slot
• Link-OS®-enabled
• Unicode compliant for multi-language printing
• 16 resident expandable ZPL II® bitmap fonts
• Two resident scalable ZPL fonts
• Multiple DOS and Windows® codepage support
• Windows drivers
• Printer utilities
• Linear & 2-D barcode symbologies ENERGY STAR® Certified, meets Energy Efficiency Level VI

Optional Features

• 300 dpi print resolution (12 dots per mm)
• Field installable cutter:– Continuous paper, linered label and tag stock Note: Cutting through labels and liner is not supported– Maximum thickness 0.0075” (0.1905 mm)

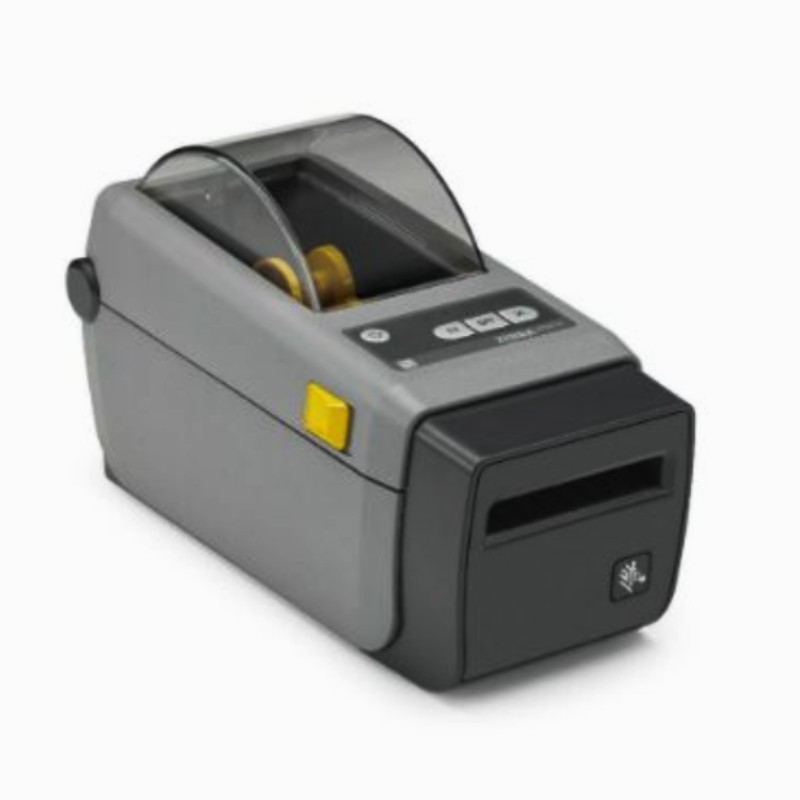

• Field installable dispenser (peeler) – Label peel and present with label taken sensor

Accessories

• ZKDU™ – keyboard display unit for ZPL
• Mounting adaptor plate
• Optional core adapters are available to accommodate 1.5”., 2” and 3”ID core sizes

Link-OS™ Solutions

Software

• Document Design – Quickly design a customized print solution using your business data and Zebra’s intuitive,plug-and-print design tools

• Printer Integration – Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems

• Printer Management – Manage your print operations locally and globally with Zebra’s suite of device management tools

• Developer Tools – Provides you with the tools you need to create your own apps, including documentation,source code, programming languages, templates and more

• Zebra Setup Utility – Single printer configuration utility
• ZebraDesigner™ – Windows Driver: Microsoft certified for Windows Vista®, Windows 7, Windows 8 Windows 8 .1 Windows 10 (downloadable from www.zebra.com)

Firmware

• EPL1/EPL2 – Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications

• ZPL II – Universal language for Zebra printers. Simplifieslabel formatting and enables format compatibility withexisting systems that run Zebra printers

• Web View – Connect and control Zebra barcode printers via the printer’s Web interface using a commonWeb browser (ZPL mode)

Media Specifications

• Media width: 0.585 – 2.36” (15 – 60 mm)
• Label length:– Minimum 0.25” (6.4 mm – tear) – Minimum 1” (25.4 mm – with cutter)– Minimum 0.5” (12.7 mm – with peeler) – Maximum 39” (991 mm)– Core inner diameter: Standard – 0.5”/12.7 mm, 1.0”/25 mm.With optional adaptor kit – 1.5”/37.1 mm, 2.0”/50.8 mm, 3”/76 mm

• Max roll outer diameter – 5.00” (127 mm)
• Media thickness – 0.003 – 0.0075” (0.08 – .1905 mm)
• Media sensing – gap, black line, notch
• Media type:– Roll-fed or fan-fold– Label stock (die cut or continuous, direct thermal)– Tag stock (die cut or continuous, direct thermal)– Receipt paper (continuous, direct thermal)– Wristband stock (direct thermal)

ZPL Programming Language (ZPL/ZPL II)

• Communicates in printable ASCII characters
• Compatible with mainframe, mini and PC hosts
• Downloadable objects include graphics and bitmap fonts, label templates and formats

• Automatic memory allocation for format while printing
• Automatic serialization of fields
• Format inversion (white on black)
• Mirror-image printing
• Four position field rotation (0º, 90º, 180º, 270º)
• Slew command
• Programmable label quantities with print, pause
• Status messages to host upon request
