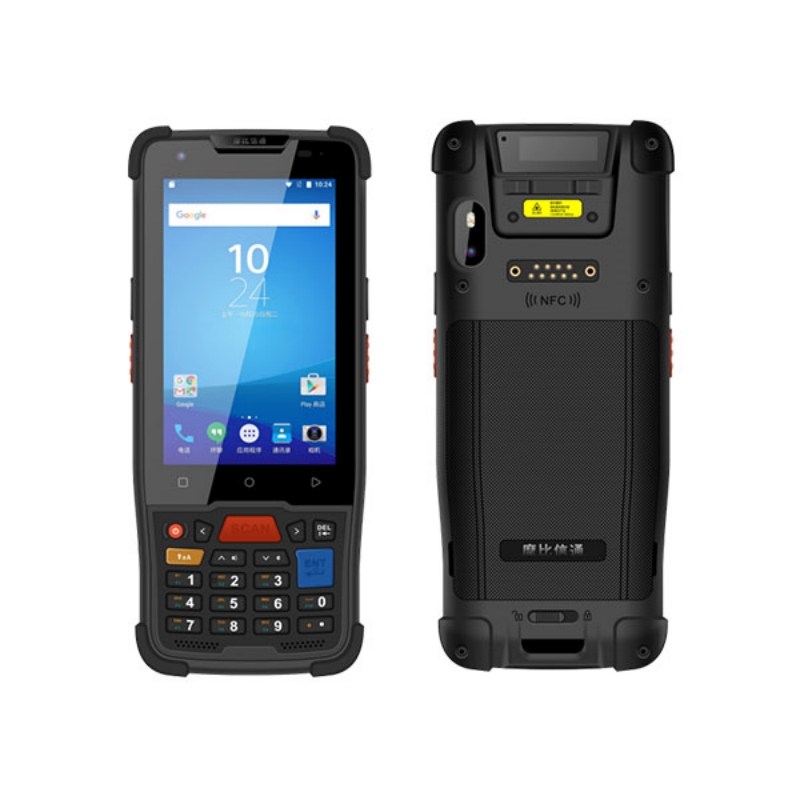

M72 Cold Chain PDA

Unique Product Characteristics

a) Professional anti fog screen, LCD, scanning window intelligent heating
b) Low temperature resistant cold chain dedicated battery, working at -25 degrees Celsius for more than 12 hours
c) New generation binocular scanning engine, seamless switching between far and near, three color lighting, intelligent matching of the best light source
d) Large key keyboard+ultra sensitive touch screen, designed specifically for wearing thick and heavy cold gloves, keeping warm while still efficient

Product specification

Specifications
OS	Android 12
CPU	MT8768A，Octa Core CPU, 12nm
MEMORY	3+32
Extend Slot	MicroSD, support SDHC, up to 128GB;
Extend Slot	Nano
PC Communication	USB 2.0 OTG : Type-C；
Sensers	Gravity sensor, proximity detector, Photosensitive sensor, Hall element, temperature and humidity sensor, status lamp
LED	Charging, Scan and System stauts
Charging Time	≤2.5 h (Room Temperature)
Operation Duration	18 hours

Data Collection
Scan Engine	Support VGA Dual Camera scan engine of Mobydata E3300
2D	Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
	Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
	GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
	GS1 DataBar Stacked Omnidirectional; MacroPDF;
	MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D	Auto discriminates all standard 1D codes including GS1，code39，code 128，code93
1D	DataBar™ linear codes.
Post	Australian Post; British Post; China Post; IMB; Japanese
	Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
	Mail Code (RM4SCC)
NFC(Optional)	13.56MHz NFC

Wireless Connectivity
WLAN	802.11 a/b/g/n/ac, 5G FEM PA
WWAN	WWAN ROW GSM: QB UMTS: B1/B2/B5/B8 FDD_LTE:B1/2/3/5/7/8/20/28 TDD_LTE:B34/B38/39/40/41
WWAN	WWAN NA GSM: QB UMTS: B1/B2/B5/B8 FDD_LTE:B2/B4/B5/B7/B12/B17/B25/B26
VoLTE	LTE CAT6
CA	Downlink 300Mbps, B1/B3/B39/B40/B41
WPAN	BT 5.1
GPS	GPS/Glonass/Beidou,Assisted GPS

Physical Specifications
LCD	4” , IPS, 800*480, 450nits
Touch	Capacitive screen, High strength glass
Camera	Auto focus 13Mega, dual flash LED
Keypad	Left/Right Scan Key, Vol+/Vol- Key, Power Key，K1/K2 Function Key
Reciver	Support
Speaker	Double speaker, Greater than 100db
Mic	Double Mic with Noise Reduction
Charging IO	USB type-C
Battery	Removable 4450mAh, Special cell for cold chain, Built-in small battery80mA, 8C
Dimension	1667117mm(Without Scan Window)
Weight	274g(With battery)

Environmental Specifications
Operation Temperature	-30°C to 55°C
Storage Temperature	-30°C to 70°C
Humidity	5%-95% non-condensing
Drop	1.8m on concrete, 3 times on each side
Tumble	3000 hits of 0.5m tumble, 600 hits of 1m tumble
IP	IP67
ESD	± 8 kV contact discharge, ± 15 kV air discharge,
Keypad lifecycle	100k

Gift Box
Device, QSG, Adapter, USB cable，Battery

Optional Accessory

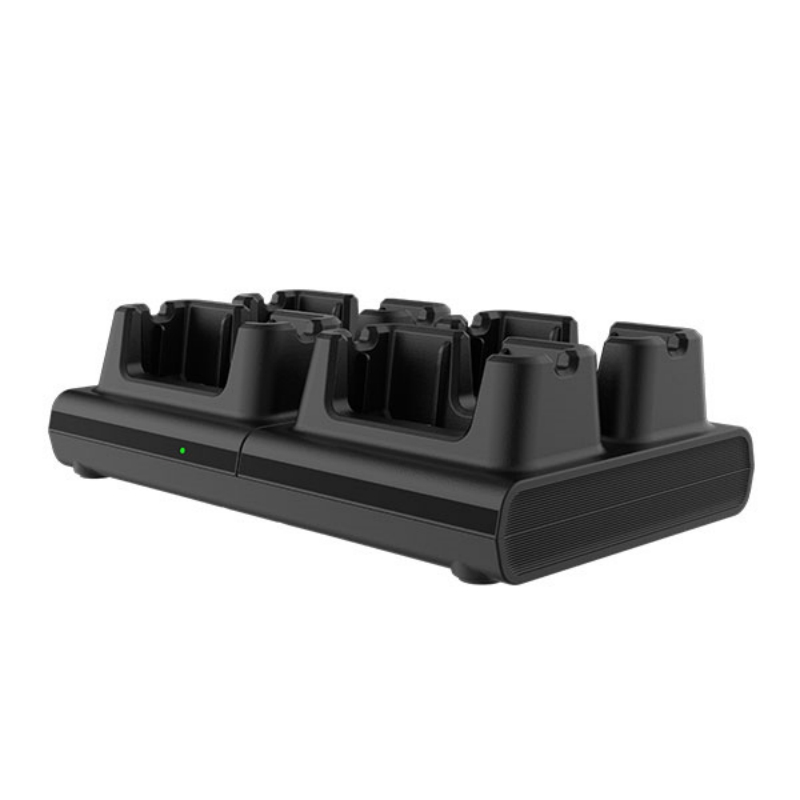

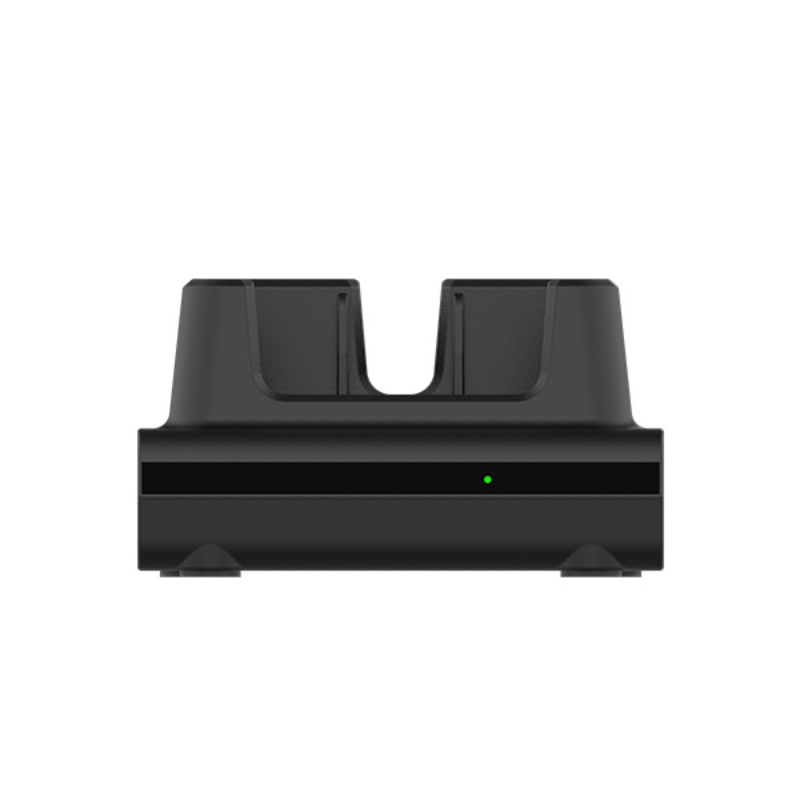

Single host charger, 4 host charger, Battery

Guarantee
Labor warranty for parts for 36 months
