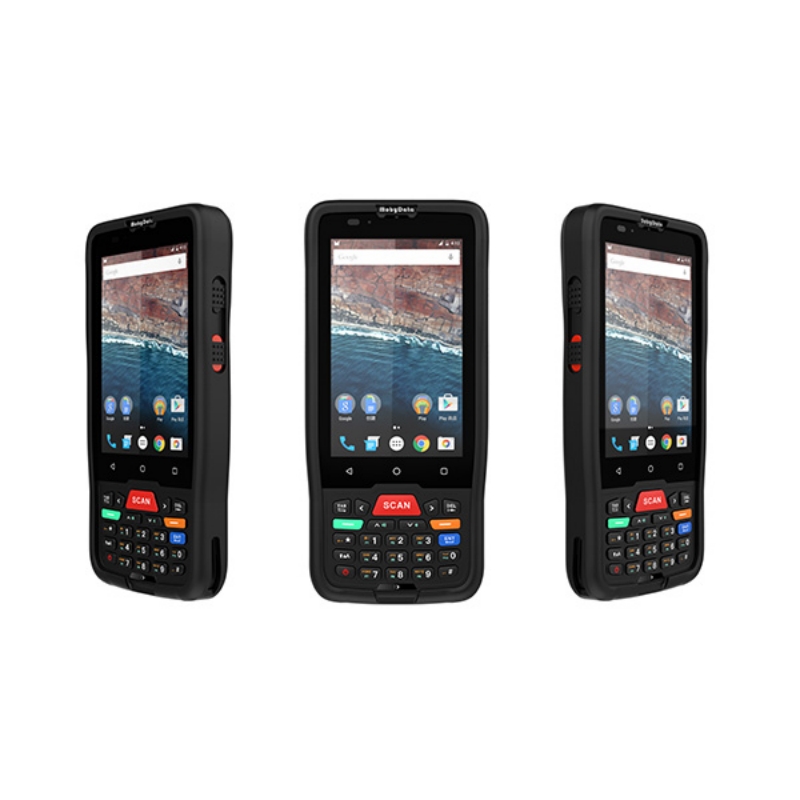

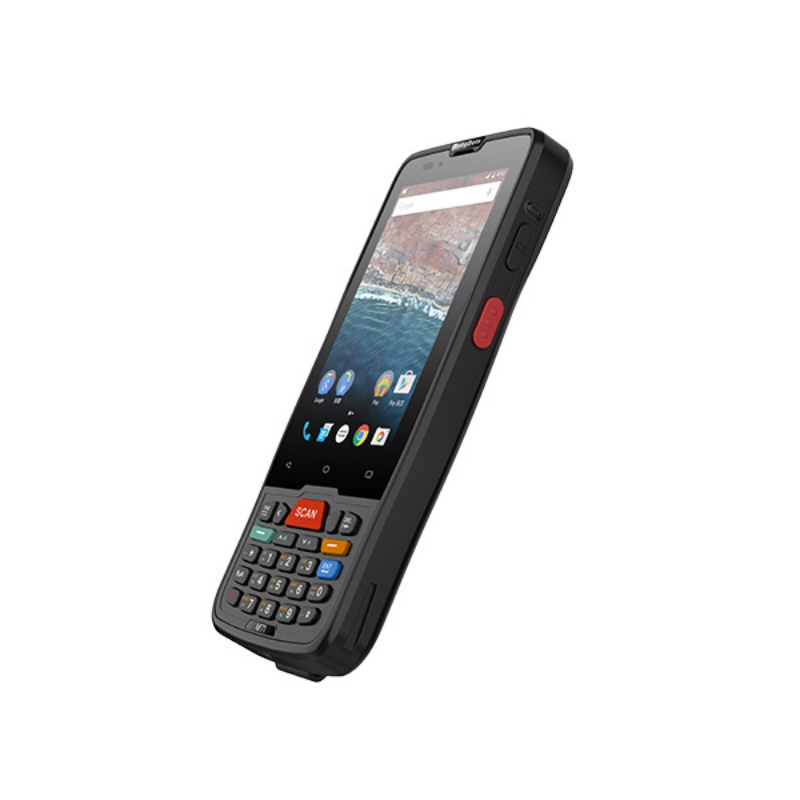

M71 Digital Keyboard PDA

Communication Performance

a) 4G LTE global band, No dead corner
b) 802.11ac/a/b/g/n enterprise level independent Wi-Fi
c) Bluetooth 5.0, low power, long distance, perfect matching wireless printer

Industrial Protection

a) IP65 industrial protection
b) Optimized structure for battery to ensure slim form factor

Scanning Performance

a) New generation slim 2D imager scan engine
b) Support VGA and megapixel versions
c)Licensed Datalogic decoding technology

Unique Product Characteristics

a) New generation Quad core or Octa core 2GHz processor, long life cycle
b) Support Android 9 and Android 10 upgrades
c) Large battery capacity but refined power consumption, 3 hours charging time but 15 hours working duration, 50 days standby duration.
d) Free to install AppLOCK, Easy Deploy and other system management software for efficient management and deployment

M71 Specifications

OS	Android 9
CPU	2GHz, Quad/Octa Core, 12nm
MEMORY	2+16/3+32
Extend Slot	MicroSD, support SDHC, up to 64GB;
Extend Slot	One micro SIM connector
PC Communication	USB 2.0 OTG : Type-C；Support TYPE-C Headset
Sensers	Light, Proximity, 3D G sensor, Hall
LED	Charging, Scan and System stauts
Charging Time	<3.5 hours(Room Temperature)
Operation Duration	14 hours（Scan Every Nine Seconds,Connect WIFI,Insert SIM Card,The Screen Is Always On）

Data Collection
Scan Engine	E3200-LE/E3250
2D	Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
	Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
	GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
	GS1 DataBar Stacked Omnidirectional;MicroPDF417;PDF417;
	Digimarc(OnlySupportE3250);UPC A/E Composites;
1D	Auto discriminates all standard 1D codes including GS1
1D	DataBar™ linear codes.
Post	Australian Post; British Post; China Post; IMB; Japanese
	Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
	Mail Code (RM4SCC)
NFC(Optional)	13.56MHz NFC

Wireless Connectivity
WLAN	802.11 ac/a/b/g/n
WWAN	TDD-LTE (B38/B39/B40/B41)
	FDD-LTE (B1/B3/B7/B8)
	UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz)
	GSM/EDGE/GPRS (900/1800MHz)
VoLTE	LTE CAT6
CA	Downlink 300Mbps, B1/B3/B7/B40/B41
WPAN	BT 5/BLE
GPS	GPS/A-GPS, GLONASS, Beidou ,Galileo

Physical Specifications
LCD	4 inch, 800*480, visible under sunshine
Touch	GFF Captive Touch, Dragontrail Glass
Camera	Auto focus 8Mega, with flash LED
Keypad	24 Numeric Keypad
	Left/Right Scan Key, Left/Right K1,K2 user-defined Key
	Back, HOME, Switch
Reciver	Support
Speaker	Min 90db at 10cm-1KHz Voice
Mic	Noise Reduction Mic
Charging IO	USB type-C
Charging IO	Charging Pad
Battery	Removable 3800mAh-4000mAh
Dimension	160×71×17mm
Weight	269g

Environmental Specifications
Operation Temperature	-20°C ~ +50°C
Storage Temperature	-30°C ~ +70°C
Humidity	10% ~ 90%
Drop	1.5m, concrete, 12 drops
Tumble	600hits, 0.5m, Steel
IP	IP65
ESD	±8kV Contact, ±15kV Air
Keypad lifecycle	500K

Accessories
Charging Cradle	Support 1 device and 1 battery
Handstrap	Black, Nylon
Battery	Removable 4000mAh

Gift Box
Gift Box	Device, Battery, QSG, Adapter, USB cable.

Product category

M71 Digital Keyboard PDA
